Qualified on temperature profiles of the standard NF S99-700, our range Care Extrême Santé offers refrigerated isothermal packaging dedicated to the transport of thermosensitive pharmaceutical products.
Constitution

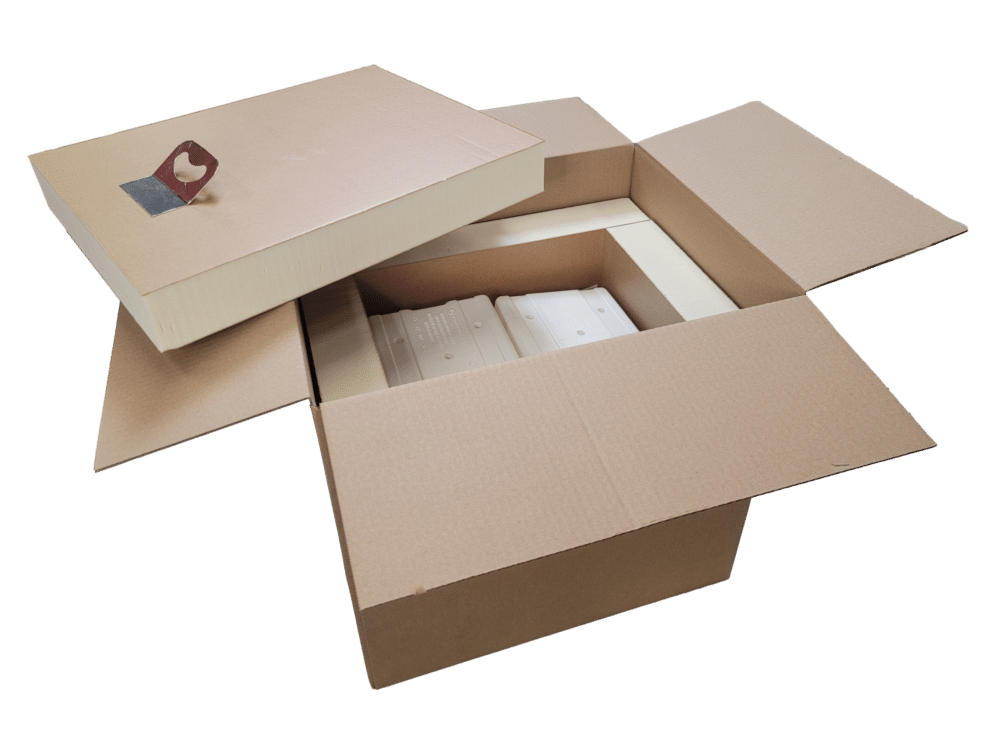

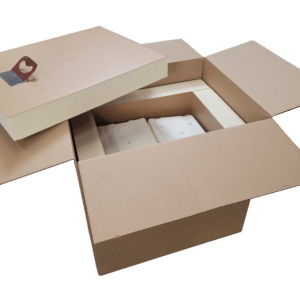

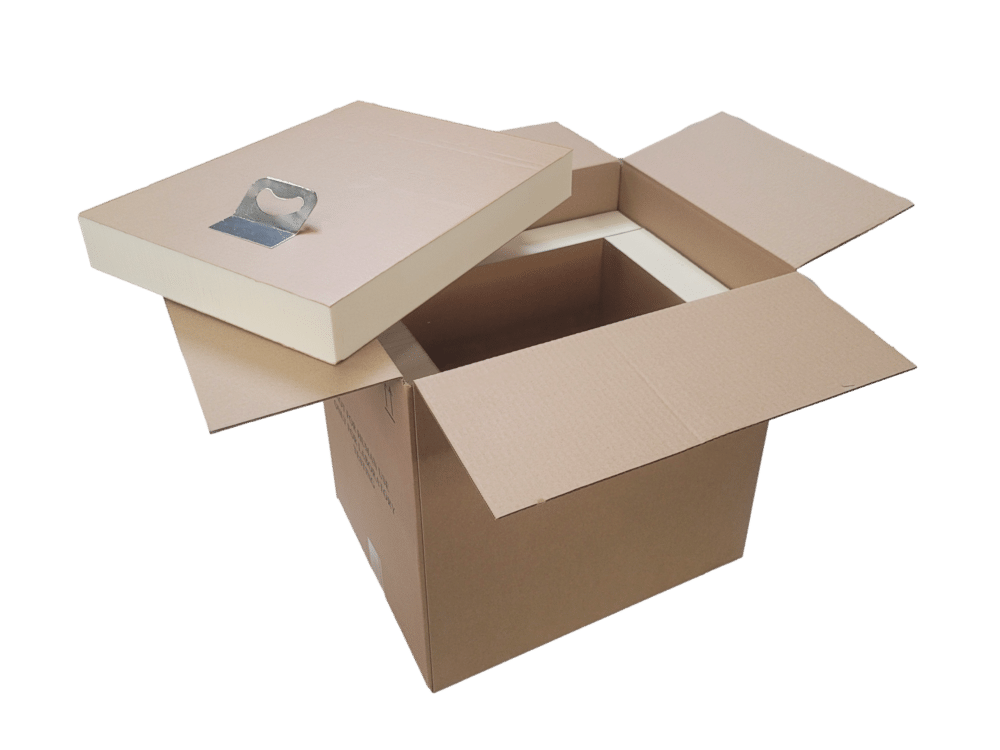

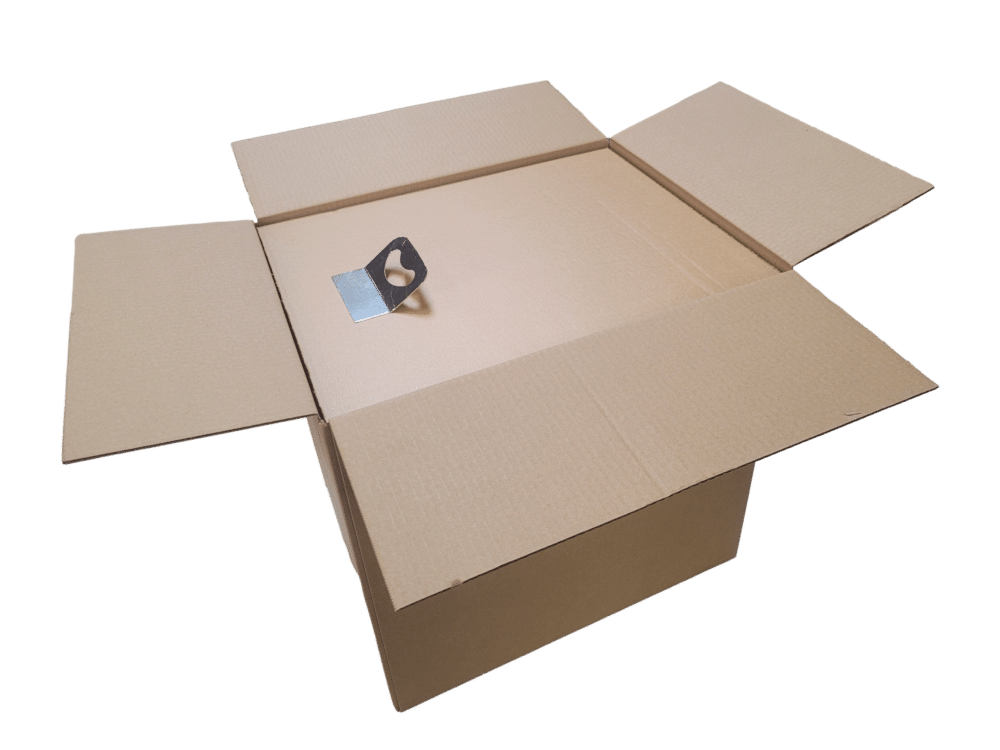

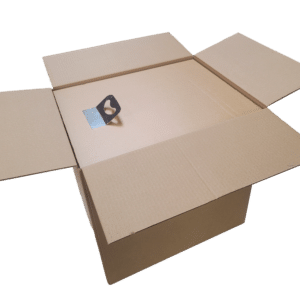

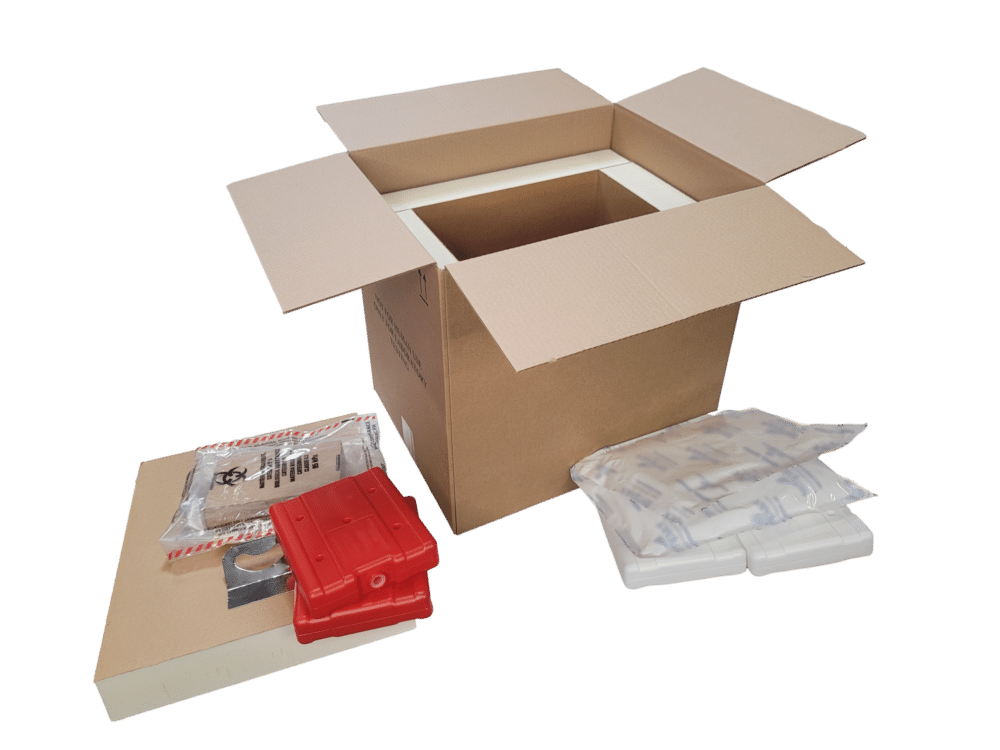

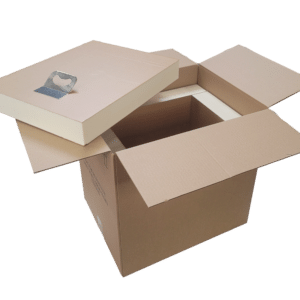

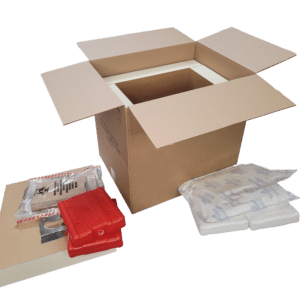

Economical and lightweight, the CareExtreme Health PU cooler consists of an outer carton box with 60mm thick high-density polyurethane (PU) insulation panels.

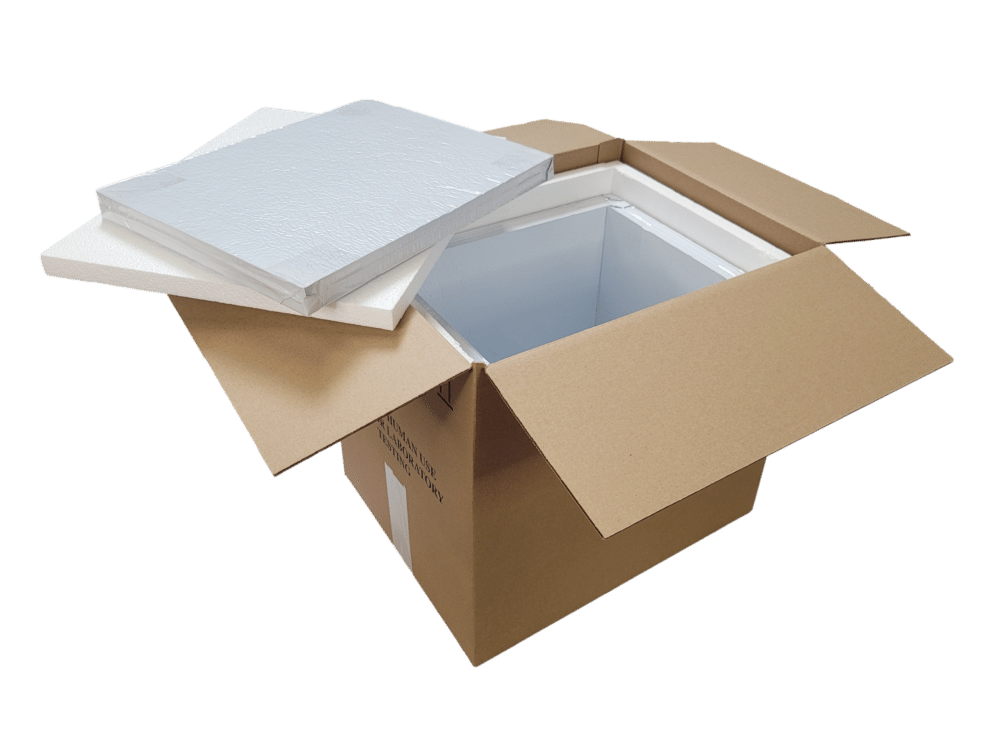

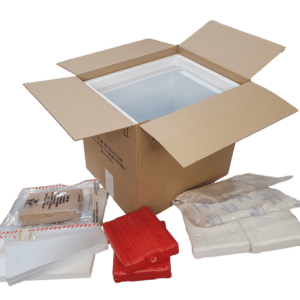

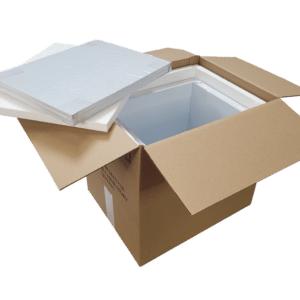

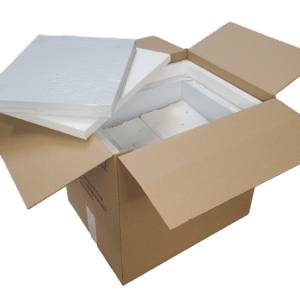

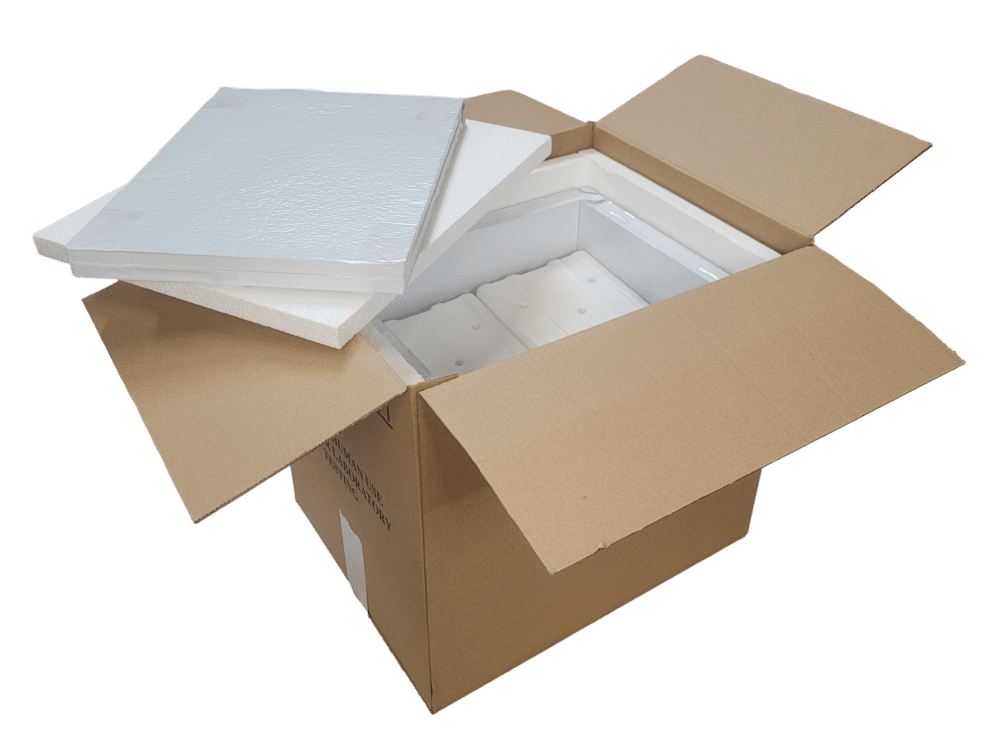

With enhanced thermal and mechanical protection, the CareExtreme Health VIP cooler consists of an anti-shock (polystyrene) EPS double insulation wall combined with vacuum panels (VIP technology) with the most insulating thermal performance on the market.
Using
The range of refrigerated isothermal packaging of health products CareExtrême from COLD & CO is dedicated to the medical sector, biotechnology, animal health, laboratory analysis (water, food, microbiological analysis) who wish to ship samples that are sensitive to temperature changes.
Operation
The mere use of an insulating case is not sufficient to transport heat-sensitive health products requiring a fireplace maintained on specific temperature ranges.
If the insulation limits the temperature exchange between outside and inside, the addition of refrigerants, pre-conditioned at the right temperature, will keep your heat-sensitive health products at a fixed temperature.
The nature of the eutectic liquid in your refrigerants determines the temperature maintained inside your package :
- P5 phase-shift coolant at +5°C to maintain T°C between +2°C and +8°C
- P20 phase change coolant at +20°C for T°C holding between +15°C and +25°C
- N20 phase-change coolant at -20°C to maintain T°C between -15°C and -25°C
- Dry ice for holding T°C below -70°C.
The quantity of refrigerants determines the duration of the temperature maintenance from 6h to 120h.
Qualified solutions
The NF S99-700 standard is a reference standard in the qualification of thermal performance of an isothermal packaging intended for the transport of health products.
This standard recommends tests to verify the ability of a package to maintain a product within a specified temperature range according to a specific temperature profile.
Qualified complete configuration with Test Report
Supplied with all components necessary for temperature maintenance
- in ranges of +2°C/+8°C ▪ +25°C/+25°C ▪ -15°/-25°C ▪ <-70°C
- for durations ranging from 24h to 120H
COLD & CO offers complete pharmaceutical isothermal shipping boxes for safe, fast and cost-effective shipment of thermosensitive medicines.

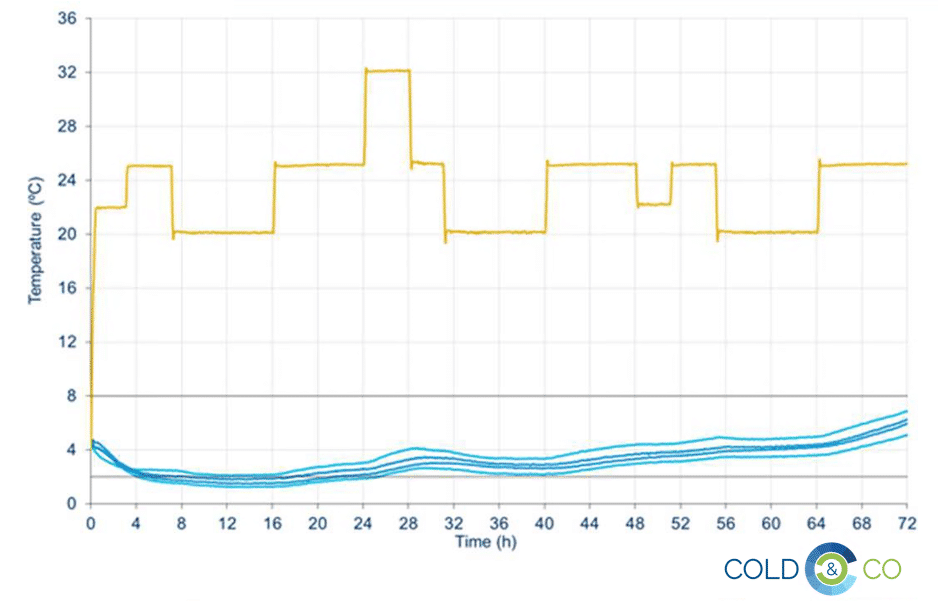

The test temperature cycle complies with AFNOR NF S99-700.

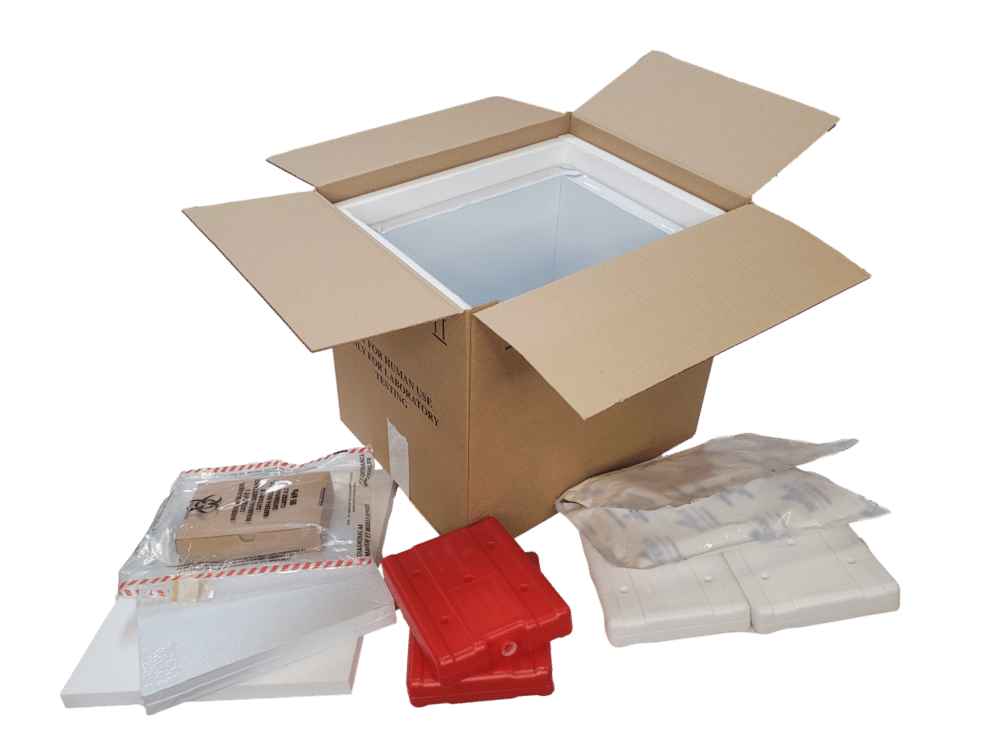

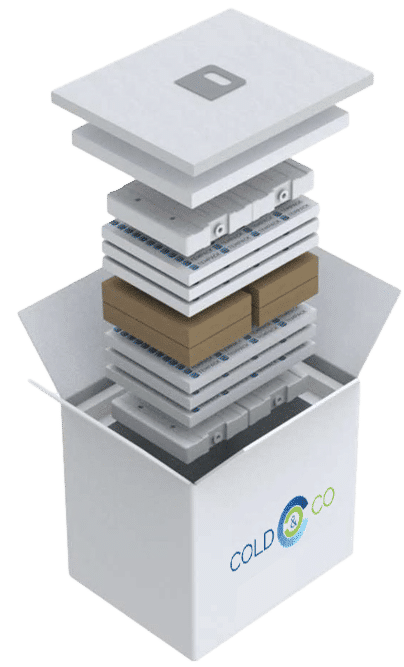

These pharmaceutical isothermal shipping boxes are delivered with all their components: outer carton box, insulating box, refrigerants, thermal separators, instructions for use and qualification report.
Example configuration :

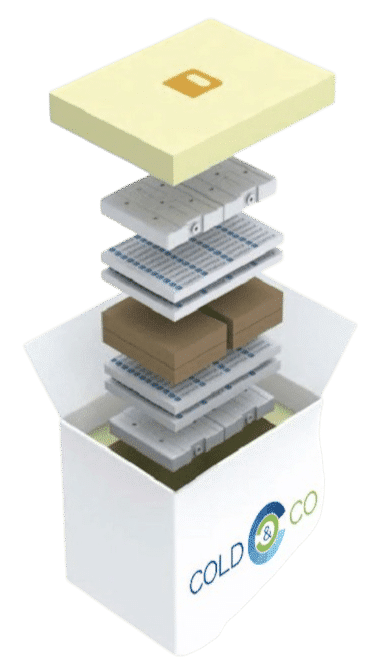

+2°C / +8°C

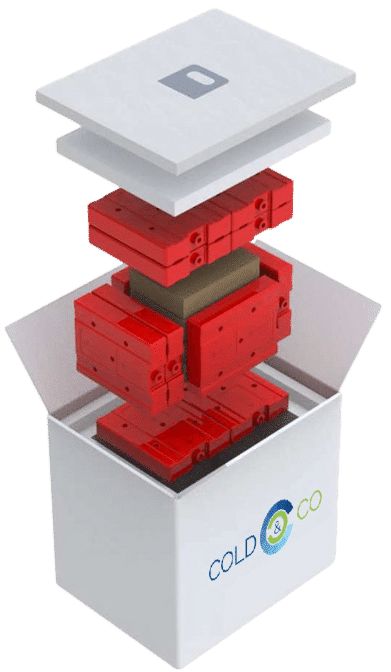

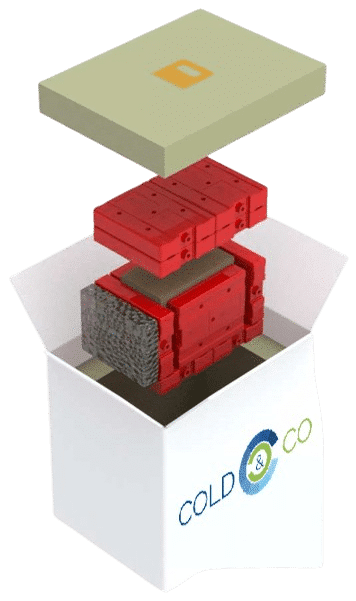

-15°C / -25°C

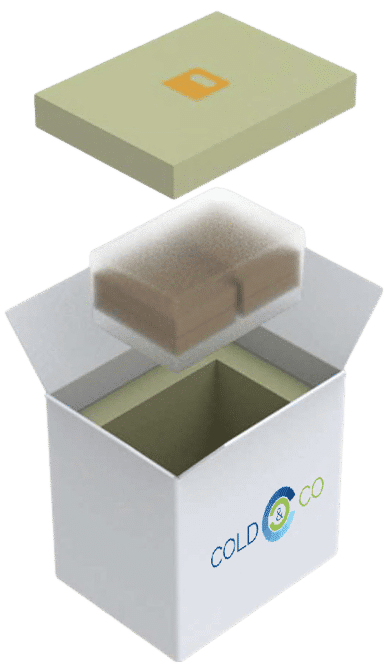

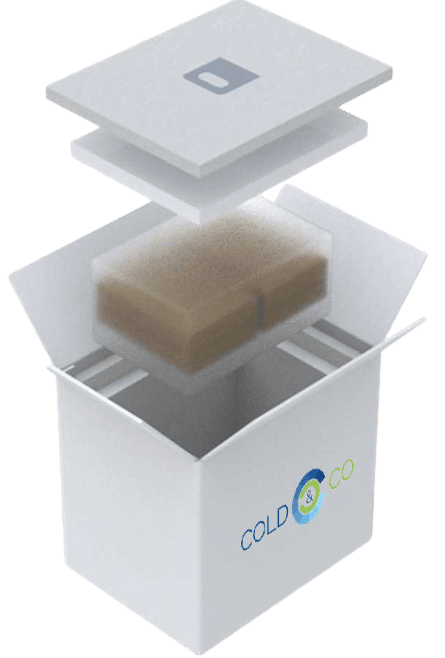

< -70°C
72H
120H
